Battery Backup Tests
Battery Backup tests allow administrators to test emergency lighting on an interim or scheduled basis to ensure the safety of facilities and employees in the event of a power outage or emergency. Life-safety testing is fully automated for battery-backup-enabled fixtures. You can schedule automated tests, monitor performance, and document results of battery backup units.
Note: To access Battery Backup tests, enable them at the General Settings level. To do this, go to Admin > General, and then select Enable Battery Backup Testing in the Feature Control section.

- Select Admin > Battery Backup Tests from the menu.

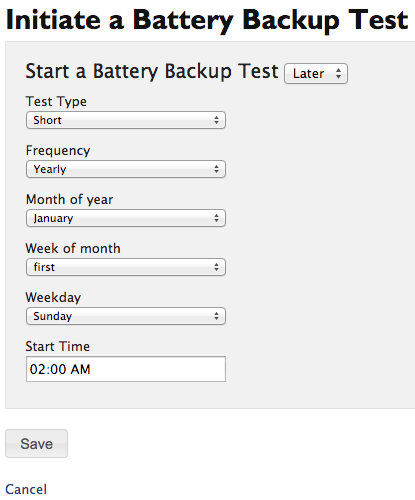

- On the Battery Backup Tests screen, click Initiate a Battery Backup Test. The Initiate a Battery Backup Test screen opens.
- Select Later.
- Select Short or Long as the test type.
Note: Long tests can only be scheduled for one time. The Frequency field is removed when scheduling a Long test.
- Select a Frequency if scheduling a Short test.
- Enter or select all Date parameters.
- Enter a Start Time.
- Click Save.
A message appears on the screen indicating a test has been scheduled. The new test also appears in the Scheduled Tests list.
Note: Edit or delete a scheduled test from the main Battery Backup Tests screen by selecting either Edit or Delete next to the test you wish to change.

The following test messages may appear when running a battery backup test:
- success: Test passed
- unreachable: Light unreachable at test time
- short: Insufficient duration
- 1: Battery disconnected
- 2: Battery over temperature
- 3: Lightbar powered from PSU
- 4: Lightbar voltage out of range
- 5: Emergency activated
- 6: Battery drained
- 7: Unexpected lightbar pattern
- 8: Certification mismatch
